OC6 project Phase IV : validation of numerical models for novel floating offshore wind support structures

Publikationstyp
Journal Article
Publikationsdatum
2024-04-29
Sprache
English
Author
Bergua, Roger
Wiley, Will
National Wind Technology Center, National Renewable Energy Laboratory, Golden, CO 80401, USA
Robertson, Amy
Jonkman, Jason
Brun, Cédric
Pineau, Jean-Philippe
Office of Naval Research Global
Qian, Quan
Maoshi, Wen
Beardsell, Alec
Cutler, Joshua
Turbine Engineering, DNV, Bristol, UK
Pierella, Fabio
Department of Wind and Energy Systems, Technical University of Denmark, Lyngby, Denmark
Hansen, Christian Anker
Technical University of Denmark, Lyngby, Denmark
Shi, Wei
Fu, Jie
Hu, Lehan
Dalian University of Technology, Dalian, China
Vlachogiannis, Prokopios
National Hydraulics and Environment Laboratory (LNHE), EDF R&D, Chatou, France
Peyrard, Christophe
National Hydraulics and Environment Laboratory (LNHE), EDF R&D, Chatou, France
Wright, Christopher Simon
Gavin&Doherty Geosolutions Ltd., Dublin, Ireland
Friel, Dallán
Gavin&Doherty Geosolutions Ltd., Dublin, Ireland
Hanssen-Bauer, Øyvind Waage
Institute for Energy Technology, Kjeller, Norway
Dos Santos, Carlos Renan
Frickel, Eelco J. P. M.
Islam, Hafizul
Maritime Research Institute Netherlands (MARIN), Wageningen, Netherlands
Koop, Arjen
Hu, Zhiqiang
Yang, Jihuai
Newcastle University, Newcastle upon Tyne, UK
Quideau, Tristan
Floating Offshore Group, PRINCIPIA, La Ciotat, France
Harnois, Violette
Shaler, Kelsey
Power and Technology Department, Shell International Exploration and Production, Houston, TX, USA
Netzband, Stefan
Fluiddynamik und Schiffstheorie M-8
Alarcon Fernandez, Daniel
Trubat, Pau
Connolly, Aengus
Department of Offshore Wind, Wood Group Kenny, Galway, Ireland
Leen, Seán B.
University of Galway, Galway, Ireland
Conway, Oisín
University of Galway, Galway, Ireland
DOI
10.15480/882.9553
TORE-URI
https://hdl.handle.net/11420/47366
Enthalten in
Wind energy science
Volume
9
Issue
4
Start Page
1025
End Page
1051
Citation
Wind Energy Science 9 (4): 1025-1051 (2024)
Publisher DOI
10.5194/wes-9-1025-2024
Scopus ID
2-s2.0-85191723157
Publisher
Copernicus Publications

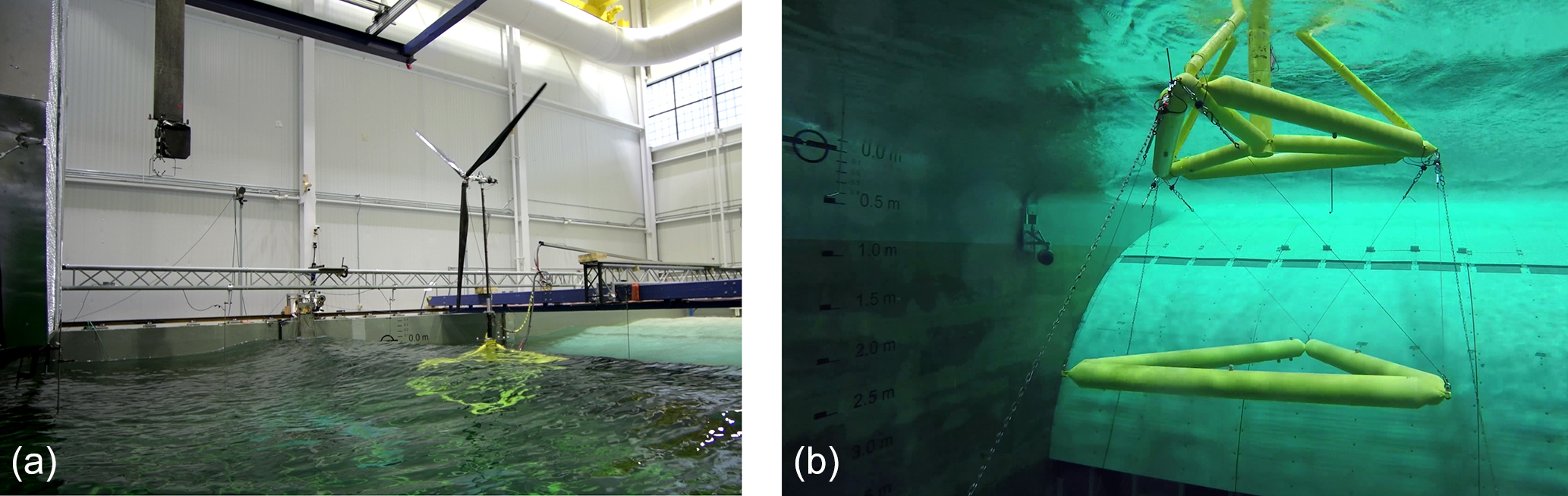

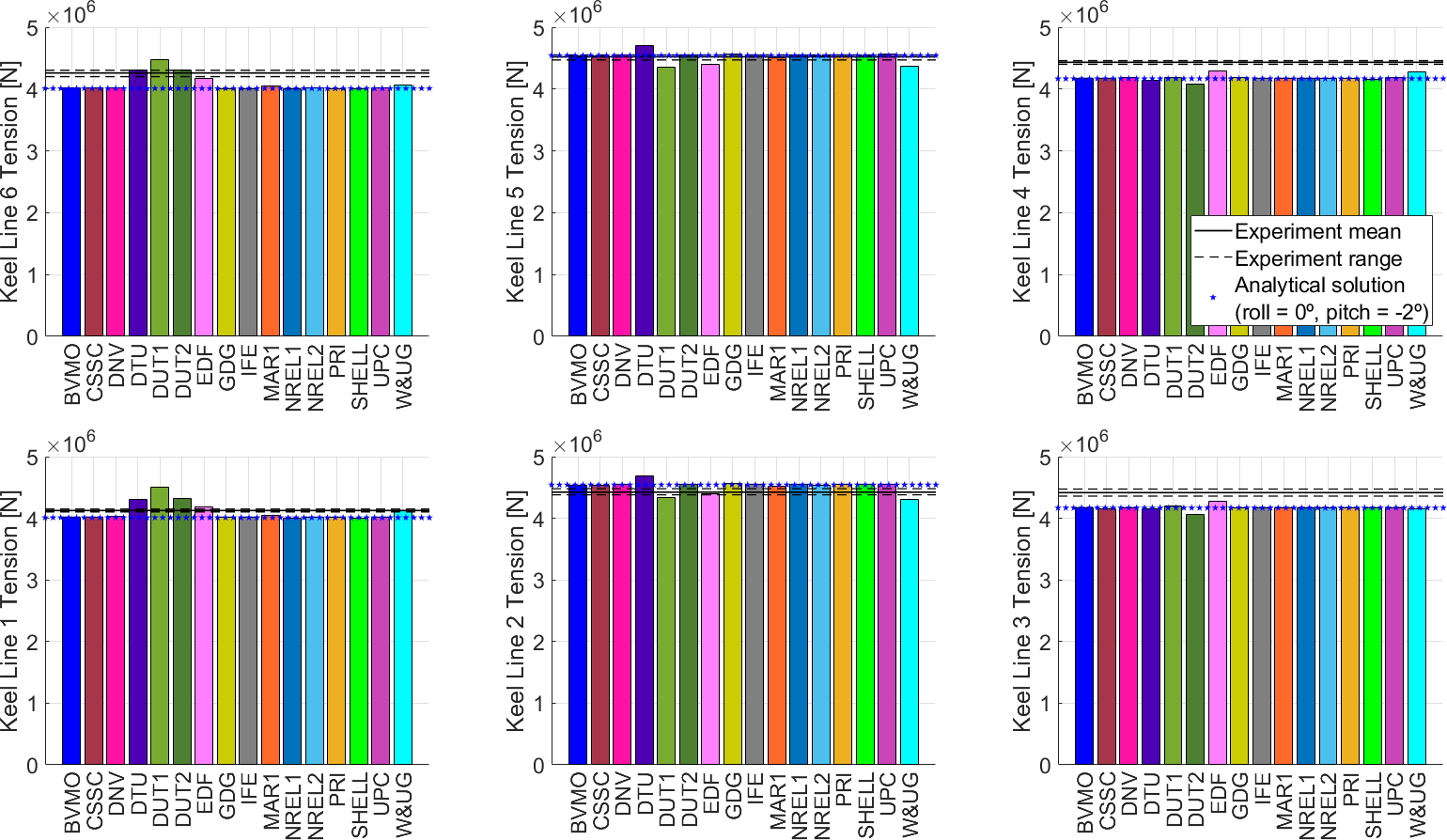

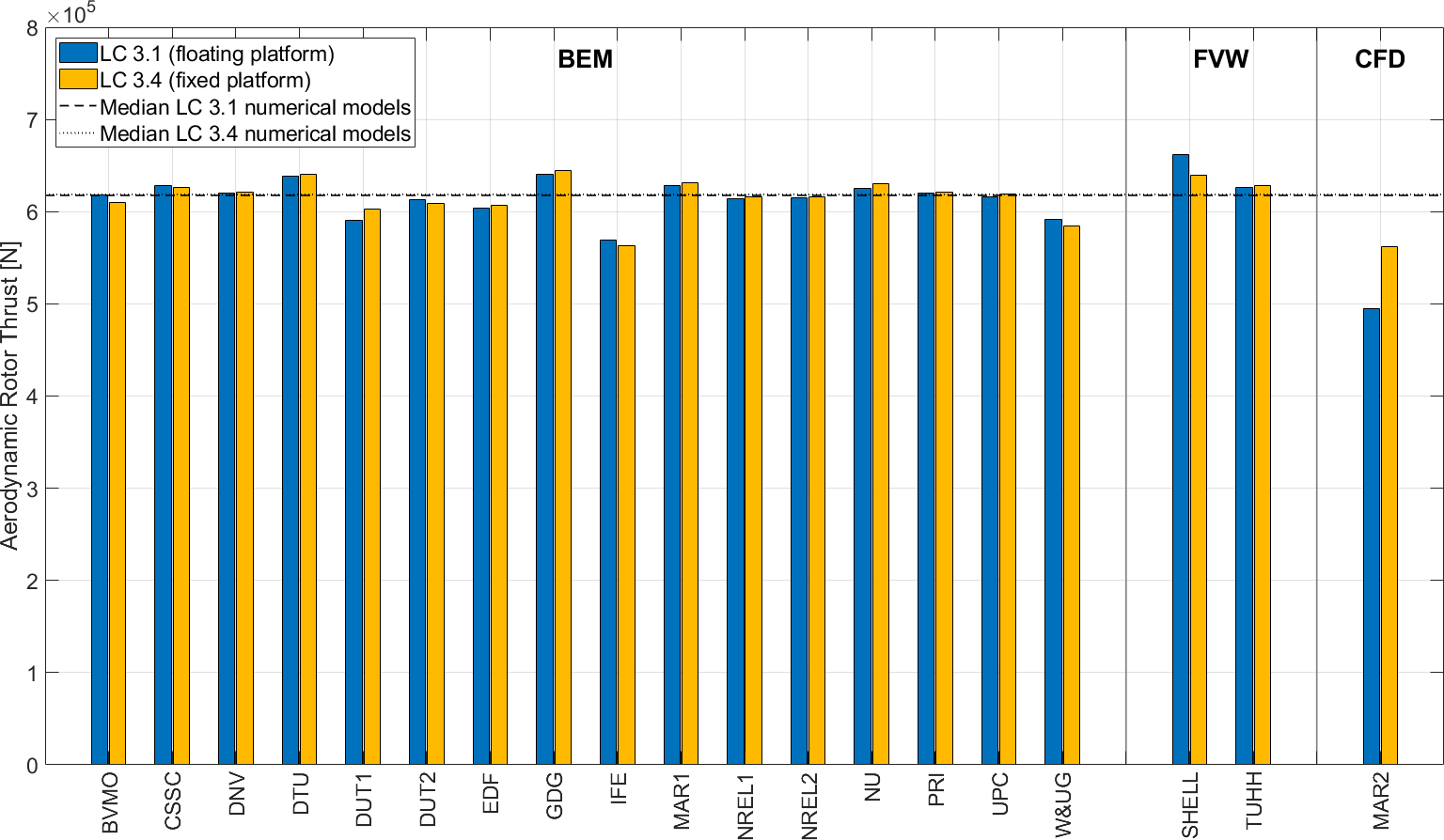

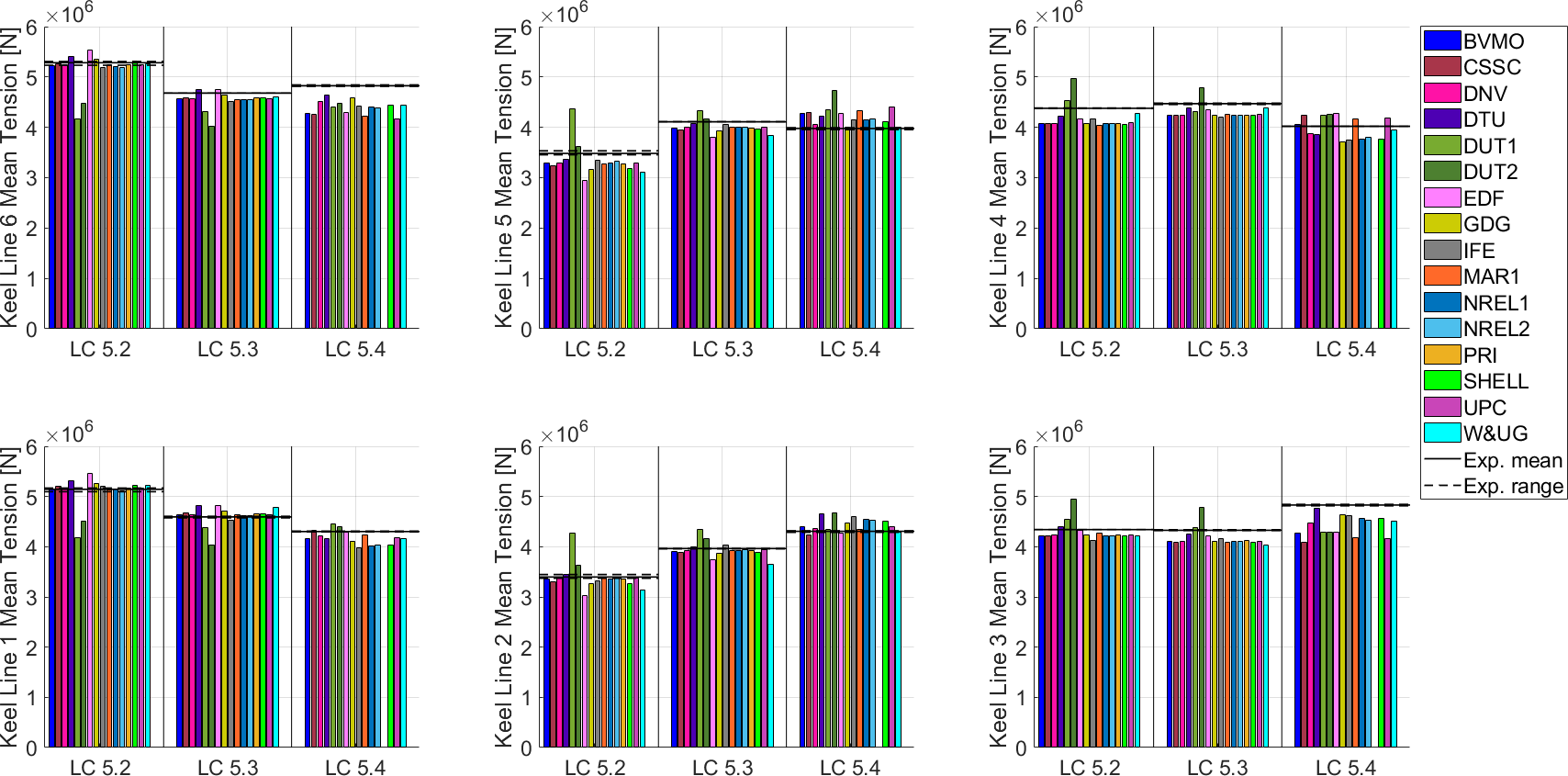

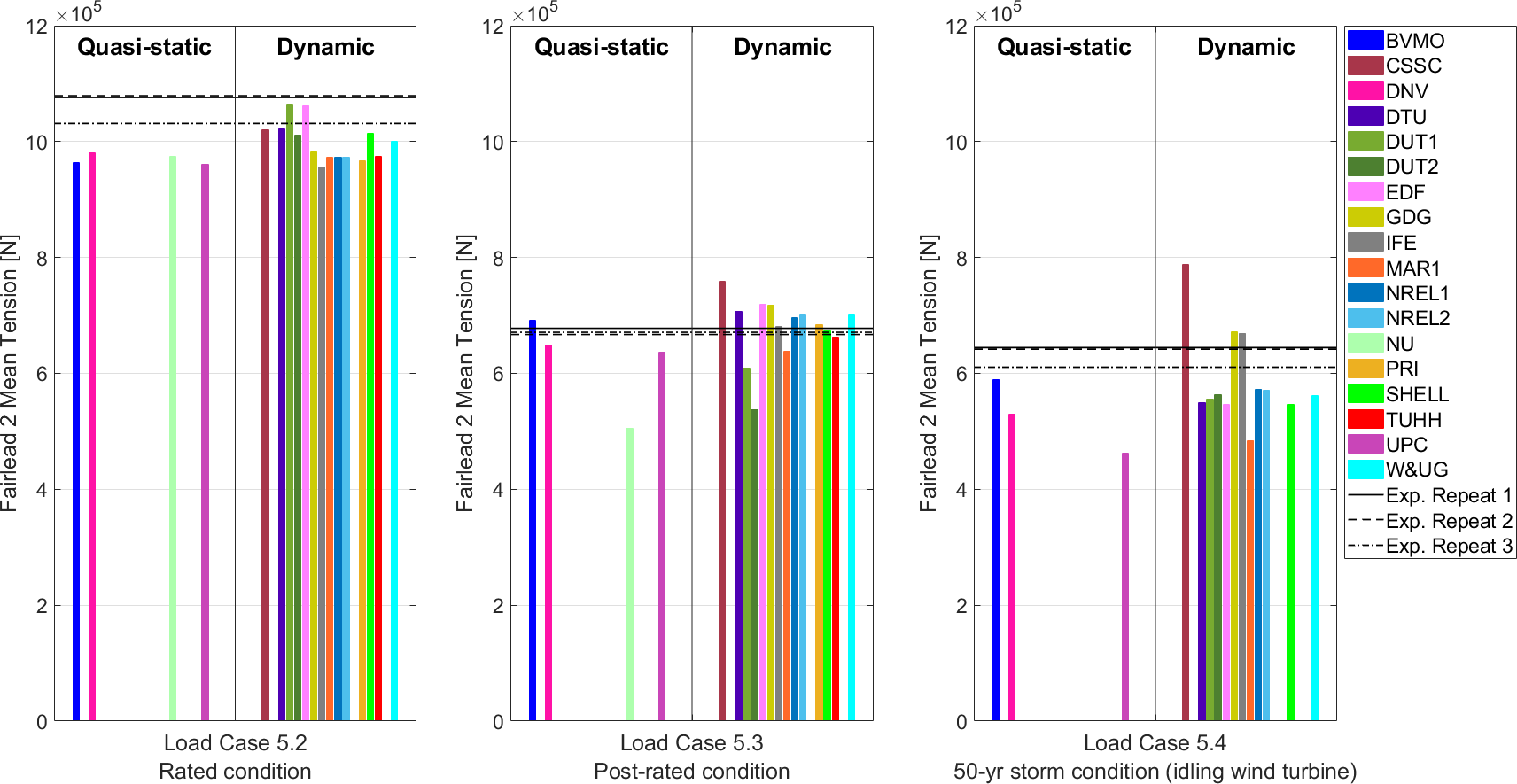

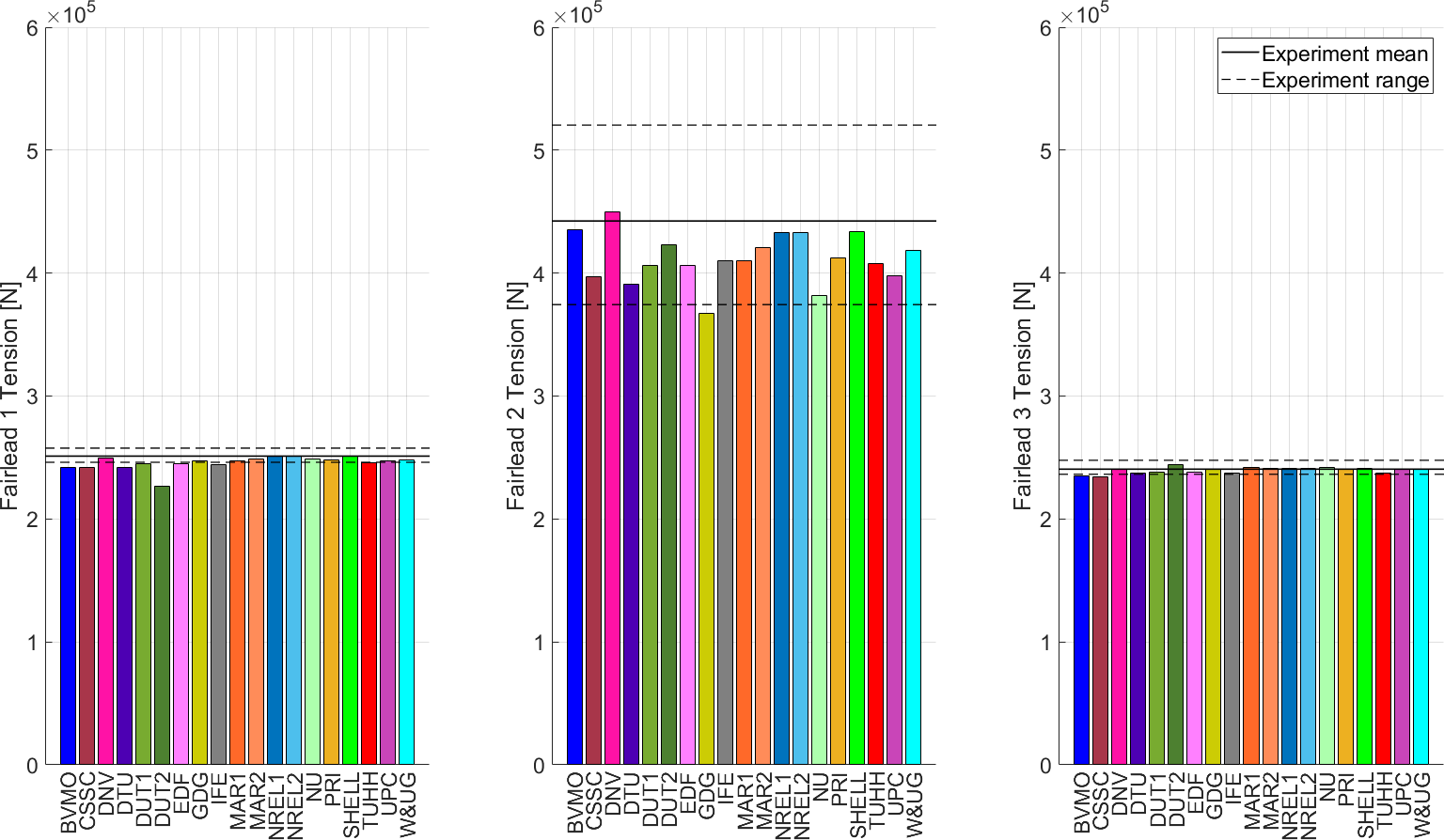

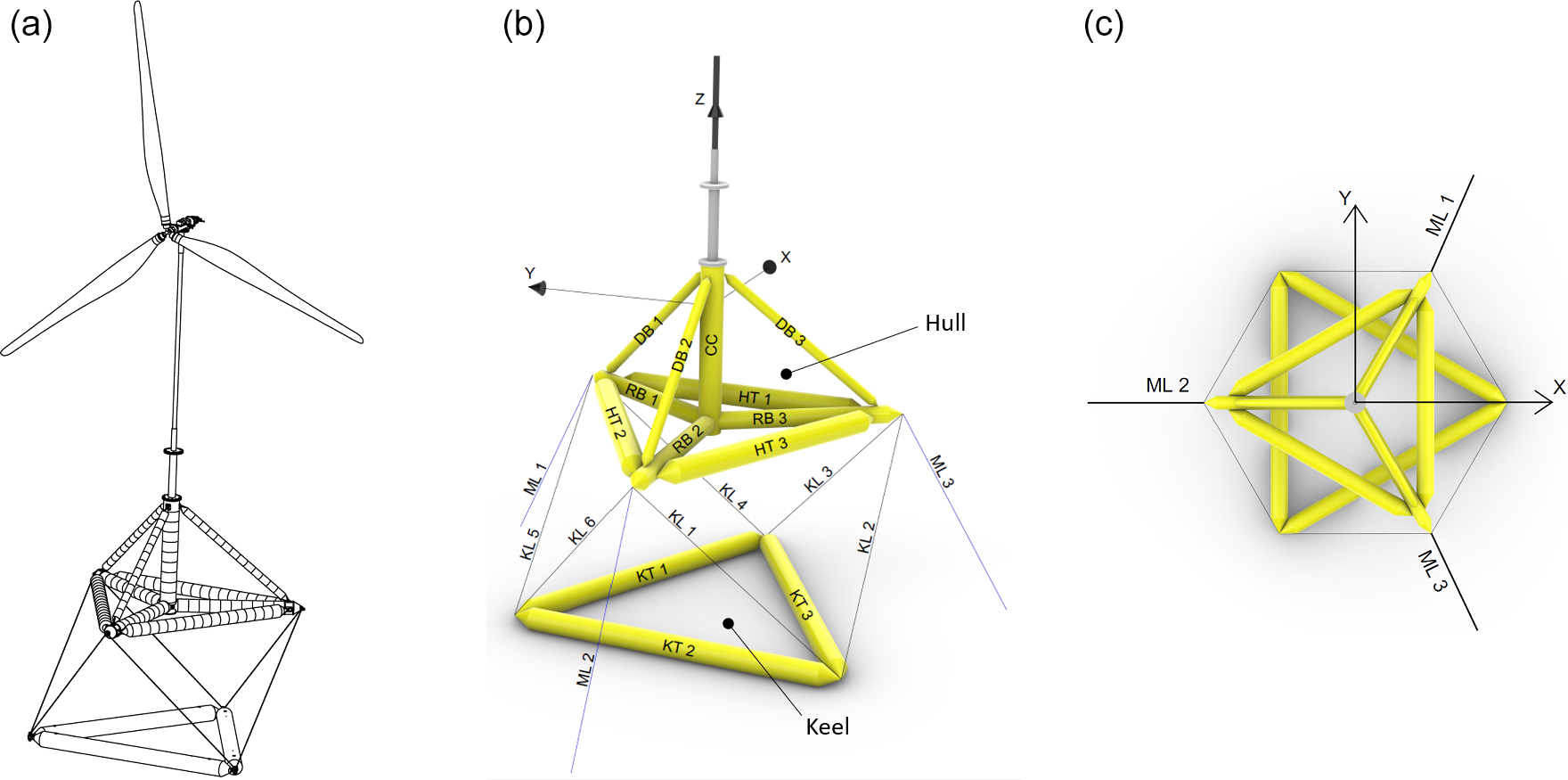

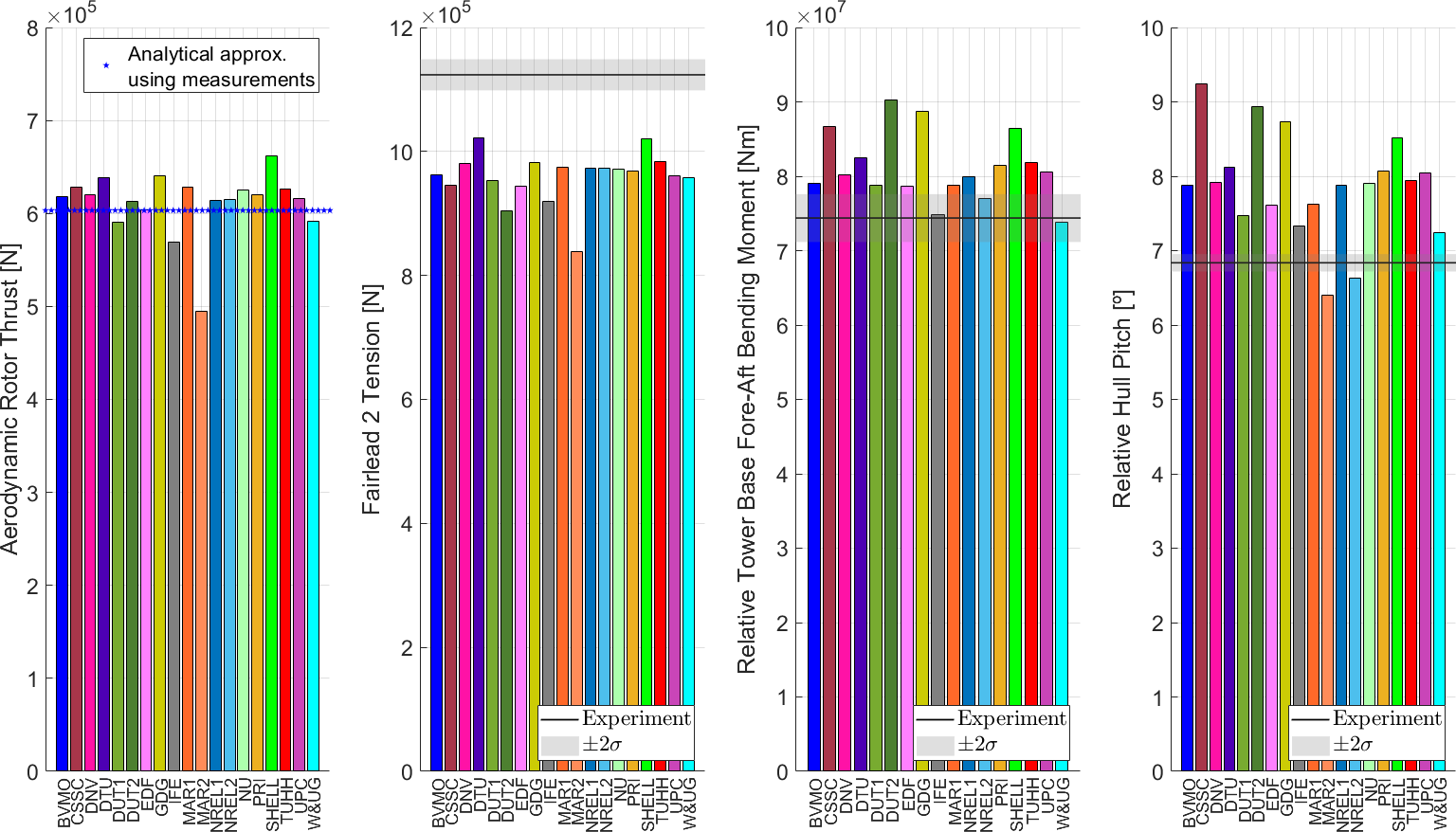

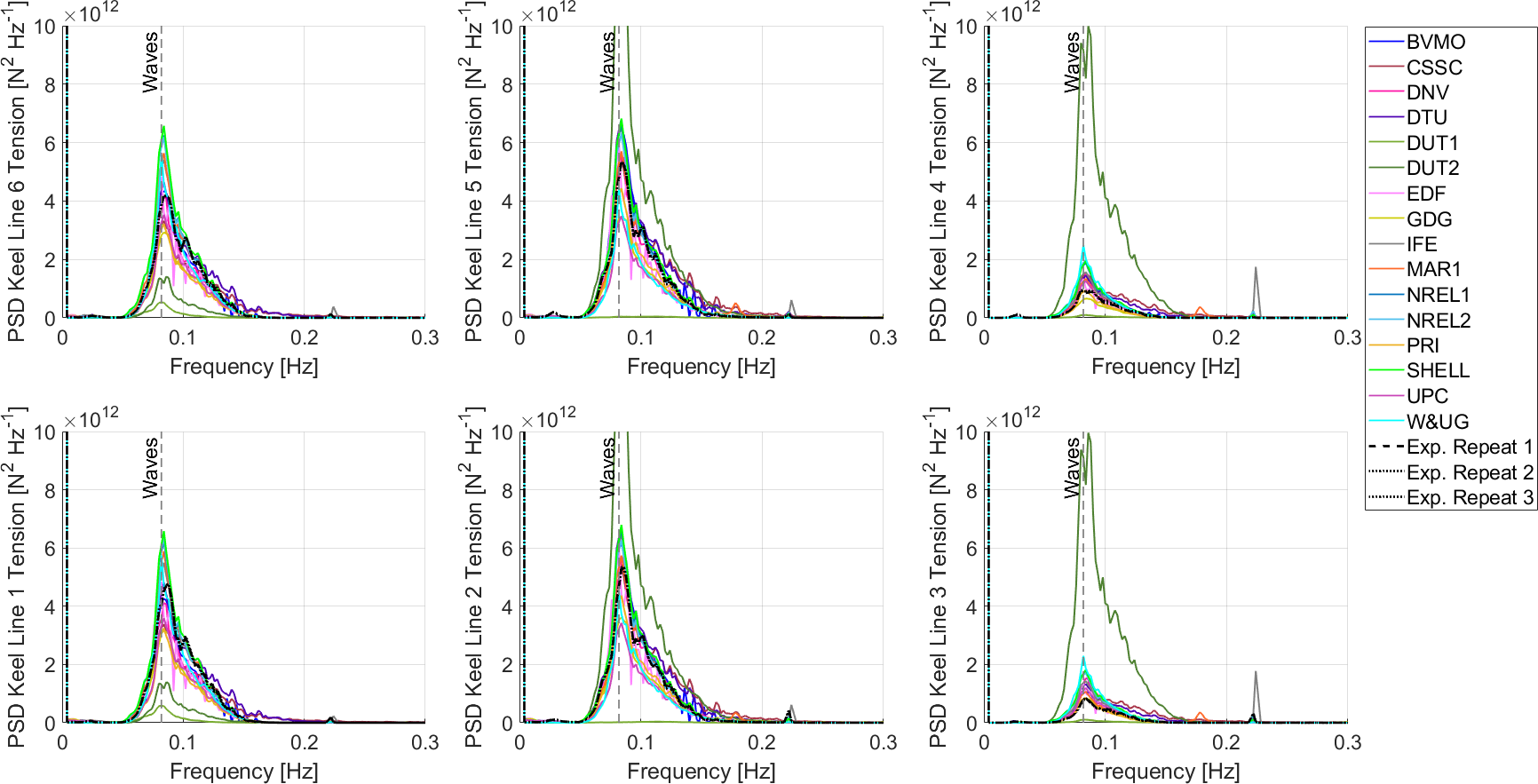

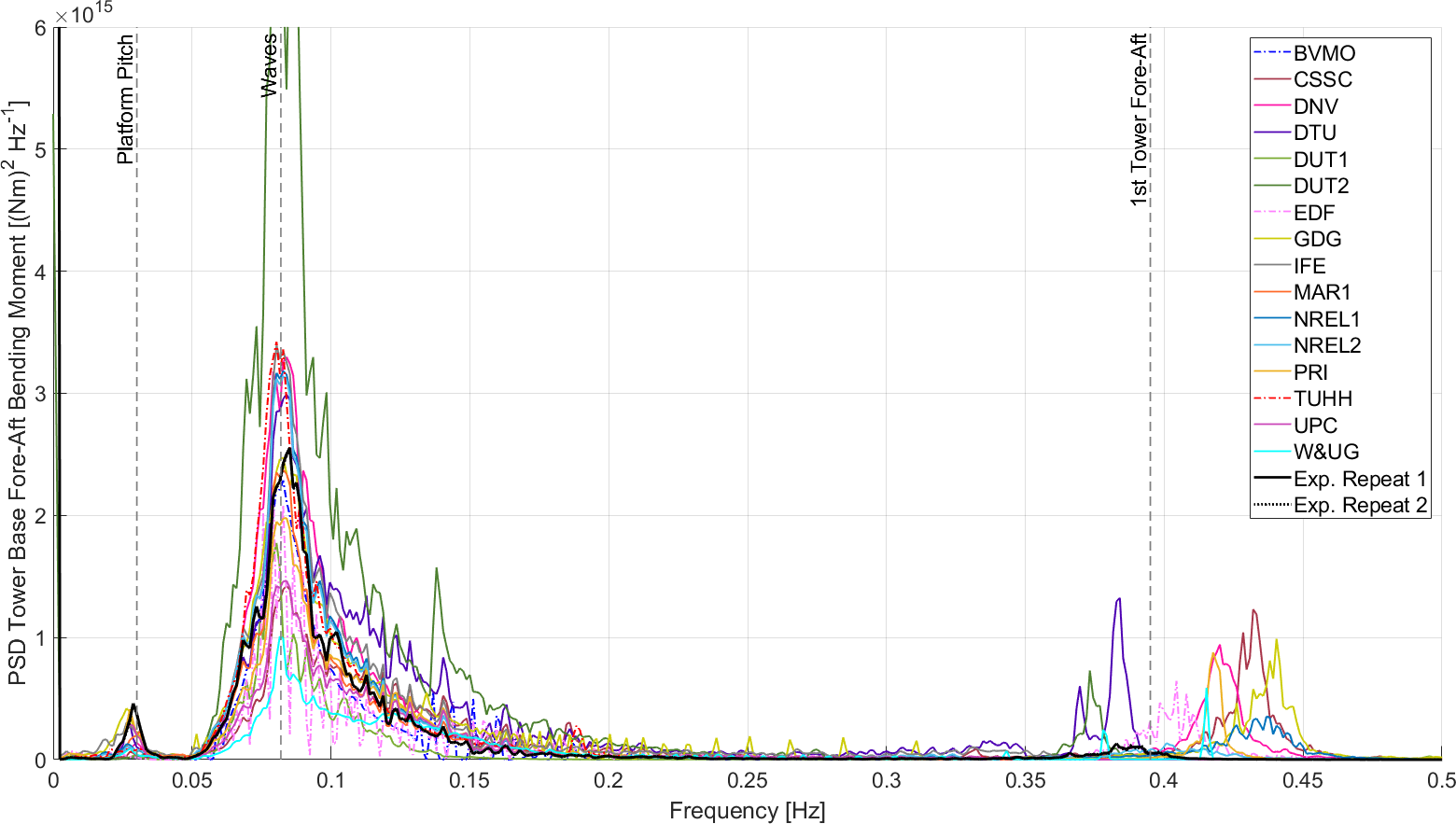

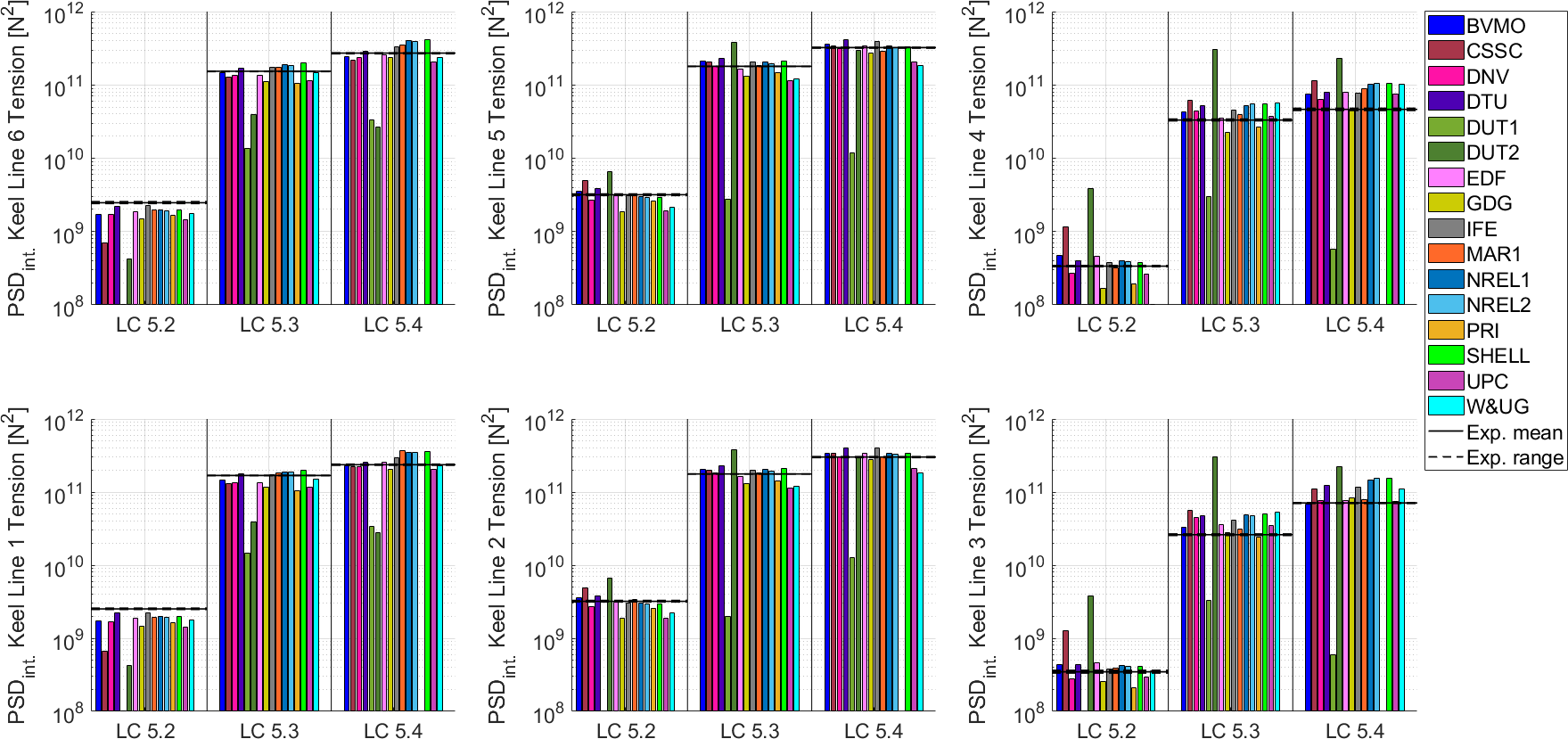

This paper provides a summary of the work done within Phase IV of the Offshore Code Comparison Collaboration, Continued with Correlation and unCertainty (OC6) project, under International Energy Agency Wind Technology Collaboration Programme Task 30. This phase focused on validating the loading on and motion of a novel floating offshore wind system. Numerical models of a 3.6MW horizontal-axis wind turbine atop the TetraSpar floating support structure were compared using measurement data from a 1 V 43-Froude-scale test performed in the University of Maine’s AlfondWind–Wave (W2) Ocean Engineering Laboratory. Participants in the project ran a series of simulations, including system equilibrium, surge offsets, free-decay tests, wind-only conditions, wave-only conditions, and a combination of wind and wave conditions. Validation of the models was performed by comparing the aerodynamic loading, floating support structure motion, tower base loading,mooring line tensions, and keel line tensions. The results show a relatively good estimation of the aerodynamic loading and a reasonable estimation of the platform motion and tower base fore–aft bending moment. However, there is a significant dispersion in the dynamic loading for the upwind mooring line. Very good agreement was observed between most of the numerical models and the experiment for the keel line tensions.
DDC Class
620: Engineering
More Funding Information
Office of Energy Efficiency and Renewable Energy
Publication version
publishedVersion
Lizenz
https://creativecommons.org/licenses/by/4.0/
